Yaml部署

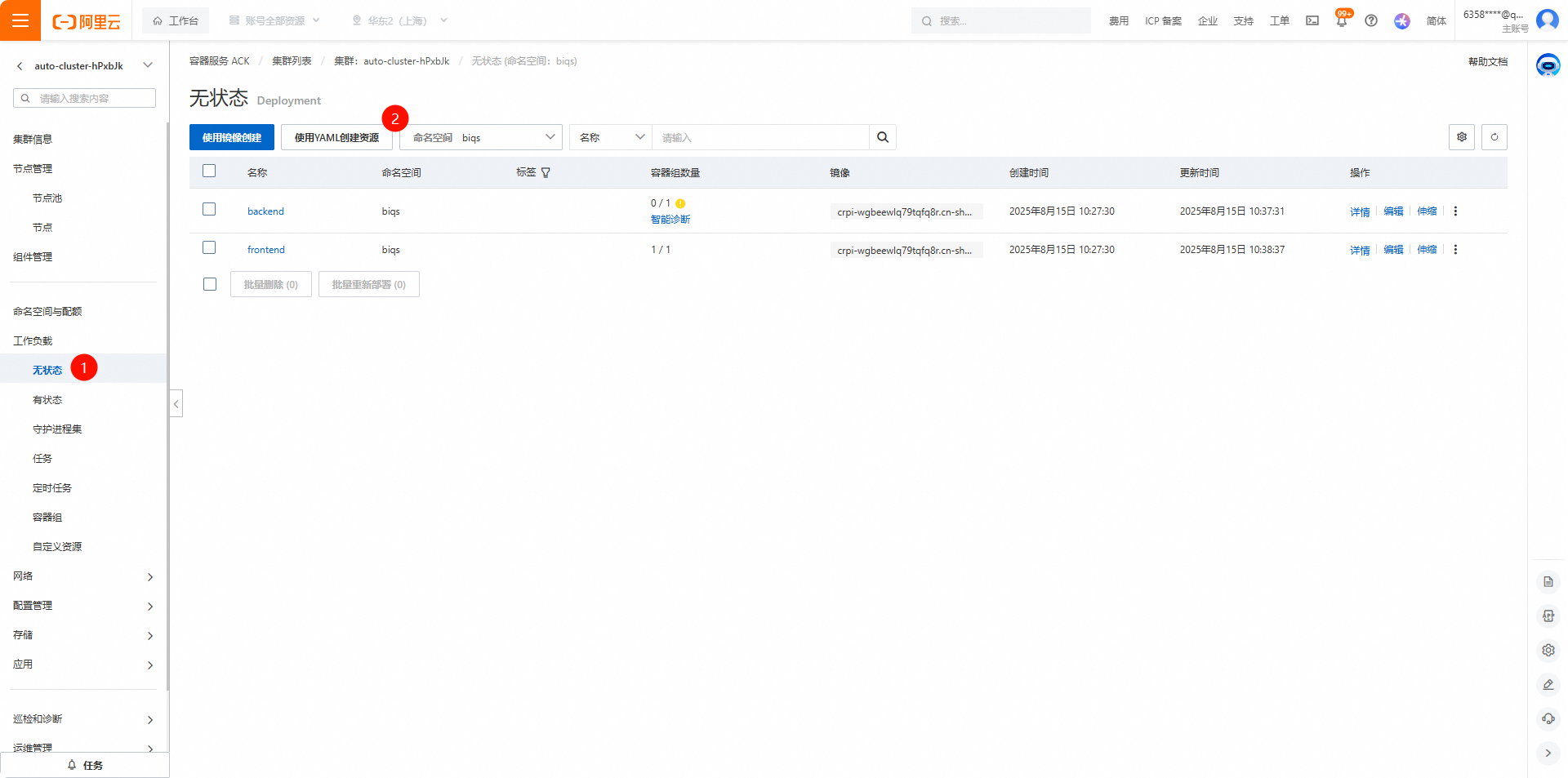

用YAML文件创建无状态

apiVersion: v1
kind: Namespace
metadata:
  name: biqs
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: backend-config
  namespace: biqs
data:
  SPRING_PROFILES_ACTIVE: prod
  MYSQL_HOST: xxxxx
  MYSQL_DATABASE: xxxxxxx
  MYSQL_USER: xxxxx
  MYSQL_PASSWORD: xxxxx
  REDIS_HOST: xxxxx
  REDIS_PORT: '6379'
  REDIS_PASSWORD: xxxxx

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: backend
  namespace: biqs
spec:
  replicas: 1
  selector:
    matchLabels:
      app: backend
  template:
    metadata:
      labels:
        app: backend
    spec:
      containers:
      - name: backend
        image: crpi-wgbeewlq79tqfq8r.cn-shanghai.personal.cr.aliyuncs.com/biqs/biqs_backend:latest
        ports:
        - containerPort: 8082
        envFrom:
        - configMapRef:
            name: backend-config
        volumeMounts:
        - name: upload-files
          mountPath: /app/upload-files
        - name: logs
          mountPath: /app/logs
      volumes:
      - name: upload-files
        persistentVolumeClaim:
          claimName: upload
      - name: logs
        persistentVolumeClaim:
          claimName: log
---
apiVersion: v1
kind: Service
metadata:
  name: backend
  namespace: biqs
spec:
  selector:
    app: backend
  ports:
  - port: 8082
    targetPort: 8082
    protocol: TCP
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: frontend
  namespace: biqs
spec:
  replicas: 1
  selector:
    matchLabels:
      app: frontend
  template:
    metadata:
      labels:
        app: frontend
    spec:
      containers:
      - name: frontend
        image: crpi-wgbeewlq79tqfq8r.cn-shanghai.personal.cr.aliyuncs.com/biqs/biqs_frontend:latest
        ports:
        - containerPort: 80
        env:
        - name: VUE_APP_API_BASE_URL
          value: http://backend:8082
---
apiVersion: v1
kind: Service
metadata:
  name: frontend
  namespace: biqs
spec:
  selector:
    app: frontend
  ports:
  - port: 8807
    targetPort: 80
    protocol: TCP
  type: NodePort

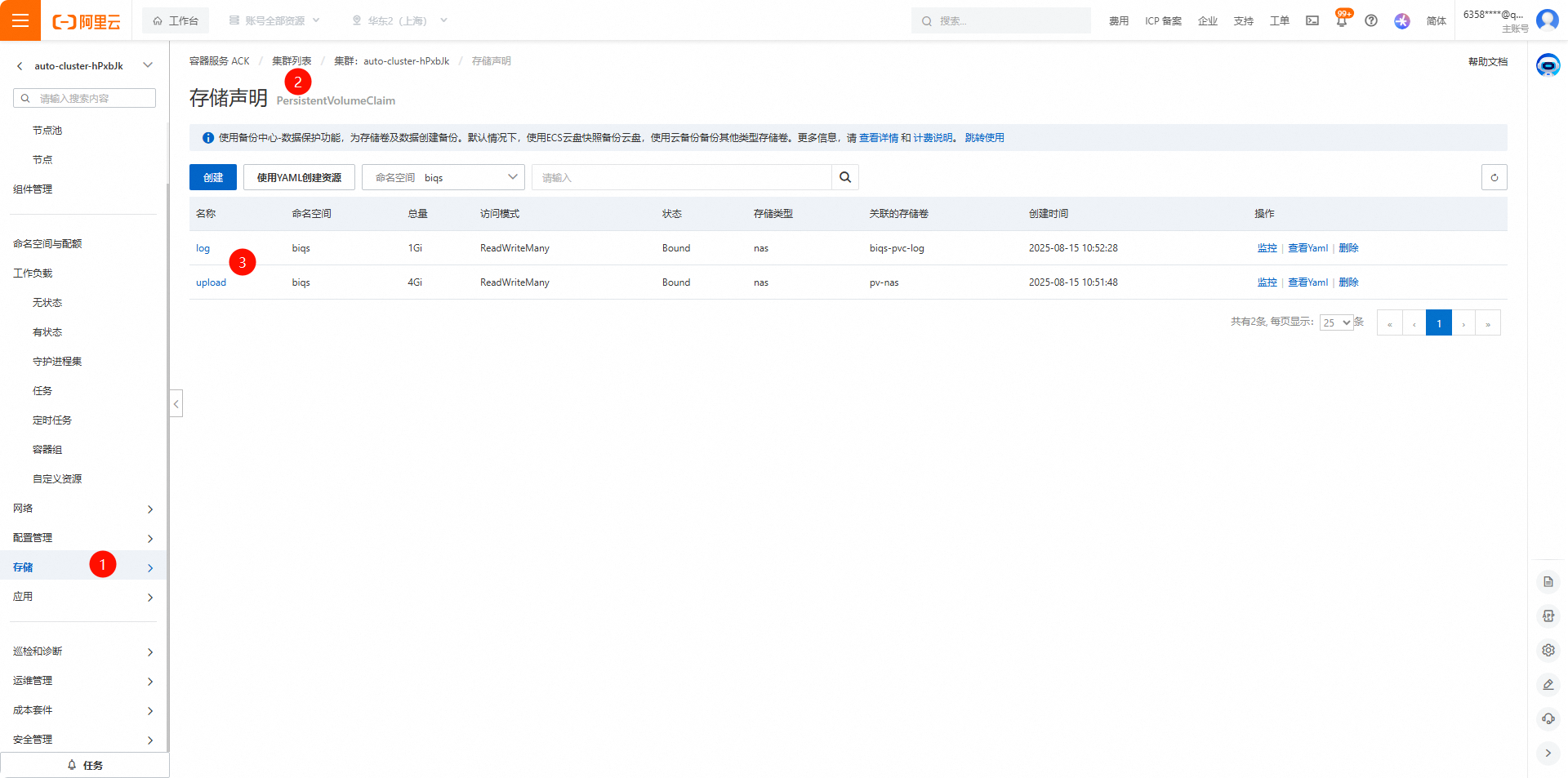

增加持久化存储
